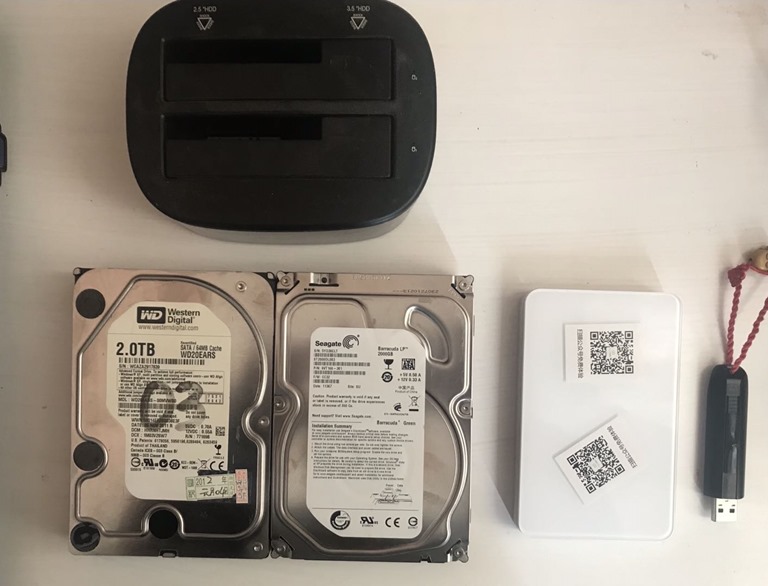

openwrt下的磁盘状态检查,顺便记录下我的两块元老硬盘

69c67b8c386c58d2150d805b26ee632

smartctl --all /dev/sda1

这个是op下的命令,如果没有就

opkg update

opkg installsmartctl

安装下。

一般都可显示,如果你像我一样,是硬盘接在usb上或者什么硬盘底座上,那么就会出现这样

smartctl 7.1 2019-12-30 r5022 [aarch64-linux-5.4.86-flippy-51+o] (localbuild)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               JMicron
Product:              Generic DISK00
Revision:             0103
Compliance:           SPC-4
User Capacity:        2,000,398,934,016 bytes [2.00 TB]
Logical block size:   512 bytes
Physical block size:  4096 bytes
LU is fully provisioned
Logical Unit id:      0x3001234567891234
Serial number:        0123456789ABCDEF
Device type:          disk
Local Time is:        Wed Jan 13 23:11:54 2021 CST

SMART support is:     Unavailable - device lacks SMART capability.

=== START OF READ SMART DATA SECTION ===
Current Drive Temperature:     0 C
Drive Trip Temperature:        0 C

Error Counter logging not supported

No Self-tests have been logged

这个时候需要调整下

smartctl -a /dev/sda1 -d sat

smartctl 7.1 2019-12-30 r5022 [aarch64-linux-5.4.86-flippy-51+o] (localbuild)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     ST2000DL003-9VT166
Serial Number:    5YD30CLT
LU WWN Device Id: 5 000c50 0366f8b01
Firmware Version: CC32
User Capacity:    2,000,398,934,016 bytes [2.00 TB]
Sector Size:      512 bytes logical/physical
Rotation Rate:    5900 rpm
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Jan 13 23:16:49 2021 CST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                         was completed without error.
                                         Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                         without error or no self-test has ever
                                         been run.
Total time to complete Offline
data collection:                (  612) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                         Auto Offline data collection on/off support.
                                         Suspend Offline collection upon new
                                         command.
                                         Offline surface scan supported.
                                         Self-test supported.
                                         Conveyance Self-test supported.
                                         Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                         power-saving mode.
                                         Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                         General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 334) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x30b7) SCT Status supported.
                                         SCT Feature Control supported.
                                         SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
   1 Raw_Read_Error_Rate     0x000f   118   099   006    Pre-fail  Always       -       185127280
   3 Spin_Up_Time            0x0003   094   093   000    Pre-fail  Always       -       0
   4 Start_Stop_Count        0x0032   098   098   020    Old_age   Always       -       2620
   5 Reallocated_Sector_Ct   0x0033   100   100   036    Pre-fail  Always       -       0
   7 Seek_Error_Rate         0x000f   080   060   030    Pre-fail  Always       -       101701132
   9 Power_On_Hours          0x0032   034   034   000    Old_age   Always       -       58076
  10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
  12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       188
183 Runtime_Bad_Block       0x0032   098   098   000    Old_age   Always       -       2
184 End-to-End_Error        0x0032   100   100   099    Old_age   Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   086   000    Old_age   Always       -       111670853667
189 High_Fly_Writes         0x003a   089   089   000    Old_age   Always       -       11
190 Airflow_Temperature_Cel 0x0022   067   046   045    Old_age   Always       -       33 (Min/Max 22/33)
191 G-Sense_Error_Rate      0x0032   100   100   000    Old_age   Always       -       0
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       97
193 Load_Cycle_Count        0x0032   099   099   000    Old_age   Always       -       3463
194 Temperature_Celsius     0x0022   033   054   000    Old_age   Always       -       33 (0 13 0 0 0)
195 Hardware_ECC_Recovered  0x001a   022   003   000    Old_age   Always       -       185127280
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       18861 (211 85 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       3338652638
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       1118472152

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
  SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
     1        0        0  Not_testing
     2        0        0  Not_testing
     3        0        0  Not_testing
     4        0        0  Not_testing
     5        0        0  Not_testing
Selective self-test flags (0x0):
   After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

这块硬盘已经跑了5万8千多个小时了。差不多6年多的时间了。

smartctl 7.1 2019-12-30 r5022 [aarch64-linux-5.4.86-flippy-51+o] (localbuild)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     WDC WD20EARS-00MVWB0
Serial Number:    WD-WCAZA2917839
LU WWN Device Id: 5 0014ee 2b0038e3f
Firmware Version: 51.0AB51
User Capacity:    2,000,398,934,016 bytes [2.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ATA8-ACS (minor revision not indicated)
SATA Version is:  SATA 2.6, 3.0 Gb/s
Local Time is:    Wed Jan 13 23:30:04 2021 CST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART Status not supported: Incomplete response, ATA output registers missing
SMART overall-health self-assessment test result: PASSED
Warning: This result is based on an Attribute check.

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                         was completed without error.
                                         Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                         without error or no self-test has ever
                                         been run.
Total time to complete Offline
data collection:                (37560) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                         Auto Offline data collection on/off support.
                                         Suspend Offline collection upon new
                                         command.
                                         Offline surface scan supported.
                                         Self-test supported.
                                         Conveyance Self-test supported.
                                         Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                         power-saving mode.
                                         Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                         General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 362) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x3035) SCT Status supported.
                                         SCT Feature Control supported.
                                         SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
   1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
   3 Spin_Up_Time            0x0027   173   165   021    Pre-fail  Always       -       6350
   4 Start_Stop_Count        0x0032   097   097   000    Old_age   Always       -       3654
   5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
   7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
   9 Power_On_Hours          0x0032   067   067   000    Old_age   Always       -       24110
  10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
  11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
  12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       172
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       97
193 Load_Cycle_Count        0x0032   115   115   000    Old_age   Always       -       255668
194 Temperature_Celsius     0x0022   124   094   000    Old_age   Always       -       26
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   200   200   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       404
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
  SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
     1        0        0  Not_testing
     2        0        0  Not_testing
     3        0        0  Not_testing
     4        0        0  Not_testing
     5        0        0  Not_testing
Selective self-test flags (0x0):
   After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

这个年轻点2万多小时

smartctl 这个命令还有很多内容搜索下看看吧~
